Cuplock Scaffolding System in Oman

Heavy-duty cuplock scaffolding for industrial and large-scale construction projects across Oman. Fast locking mechanism, high load capacity, and proven reliability for oil & gas, refineries, and high-rise buildings.

WhatsApp Us Call +968 9936 6276

Rent or Buy Heavy-Duty Industrial Oil & Gas Approved All Oman

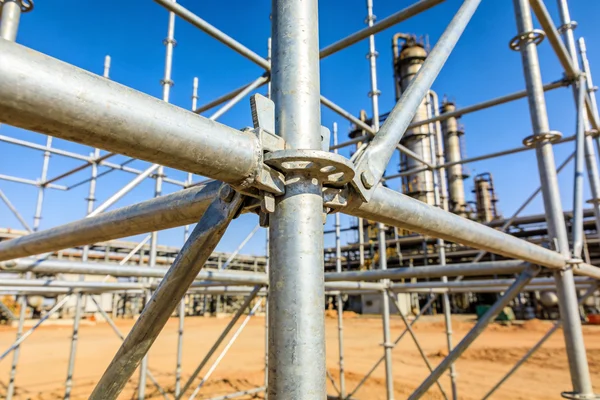

Cuplock scaffolding on industrial site in Oman

System Overview

What Is Cuplock Scaffolding?

A proven steel scaffolding system used worldwide for industrial and heavy-duty access

Cuplock is a steel scaffolding system that uses a unique cup-shaped locking mechanism. Each vertical standard has cups welded at regular intervals. Horizontal ledgers and braces slot into the bottom cup, then the top cup is struck down with a hammer to lock everything in place — no loose bolts, no couplers needed.

This makes cuplock one of the fastest and most secure scaffolding systems to erect and dismantle, especially on large-scale projects where speed and safety are critical.

In Oman, cuplock scaffolding is the standard choice for oil & gas projects, refinery shutdowns, industrial plants, and large commercial construction where heavy loads and complex configurations are required.

Components

Cuplock System Components

All components available individually or as complete packages

Verticals (Standards)

Steel tubes with welded cups at 500mm intervals. Available in lengths from 0.5m to 3.0m. The backbone of every cuplock structure.

Ledgers

Horizontal members with blade ends that lock into the cups. Available in bay lengths from 0.6m to 2.5m for various configurations.

Braces

Diagonal members for lateral stability. Essential for structural integrity on every cuplock installation.

Base Jacks & U-Heads

Adjustable base plates for levelling on uneven ground. U-heads for supporting formwork beams at the top. Browse all accessories →

Steel Platforms

Walk boards and platform decks for safe working surfaces. Available in standard widths to fit cuplock bay sizes.

Toe Boards & Guard Rails

Safety components for fall protection. Required on all working platforms per Oman safety regulations.

Applications

Best Used For

Where cuplock scaffolding delivers the most value

Oil & Gas Projects

Refinery shutdowns, turnarounds, and maintenance access. PDO and OQ approved configurations. Oil & gas scaffolding services →

Large Construction

High-rise buildings, bridges, and heavy concrete structures where formwork support is needed. Construction scaffolding →

Shoring & Formwork

Cuplock verticals with U-heads support heavy formwork loads for slab casting and beam work. Shoring services →

Industrial Plants

Power stations, desalination plants, cement factories, and other industrial facilities across Oman.

Pricing

Cuplock Scaffolding Pricing

Project-specific pricing — depends on quantity, duration, and scope

Cuplock scaffolding is priced per project based on the quantity of components, rental duration, and site requirements. We provide both rental and sale options for all cuplock materials.

For a quote, WhatsApp or call us with your project details — area to scaffold, height required, and approximate duration. We respond within 2 hours during working days.

WhatsApp Us Call +968 9936 6276

Comparison

Cuplock vs Ringlock

Choosing the right system for your project

Feature	Cuplock	Ringlock
Locking Mechanism	Cup & blade — hammer lock	Rosette & wedge pin
Assembly Speed	Fast	Faster — fewer strikes needed
Load Capacity	Very high	Very high
Versatility	Linear structures, facades	Curved, circular, complex shapes
Best For	Oil & gas, industrial, shoring	Facades, complex geometry, events
Availability in Oman	Widely available	Available — growing in use

Need help choosing? Learn more about ringlock scaffolding →
